Product Introduction

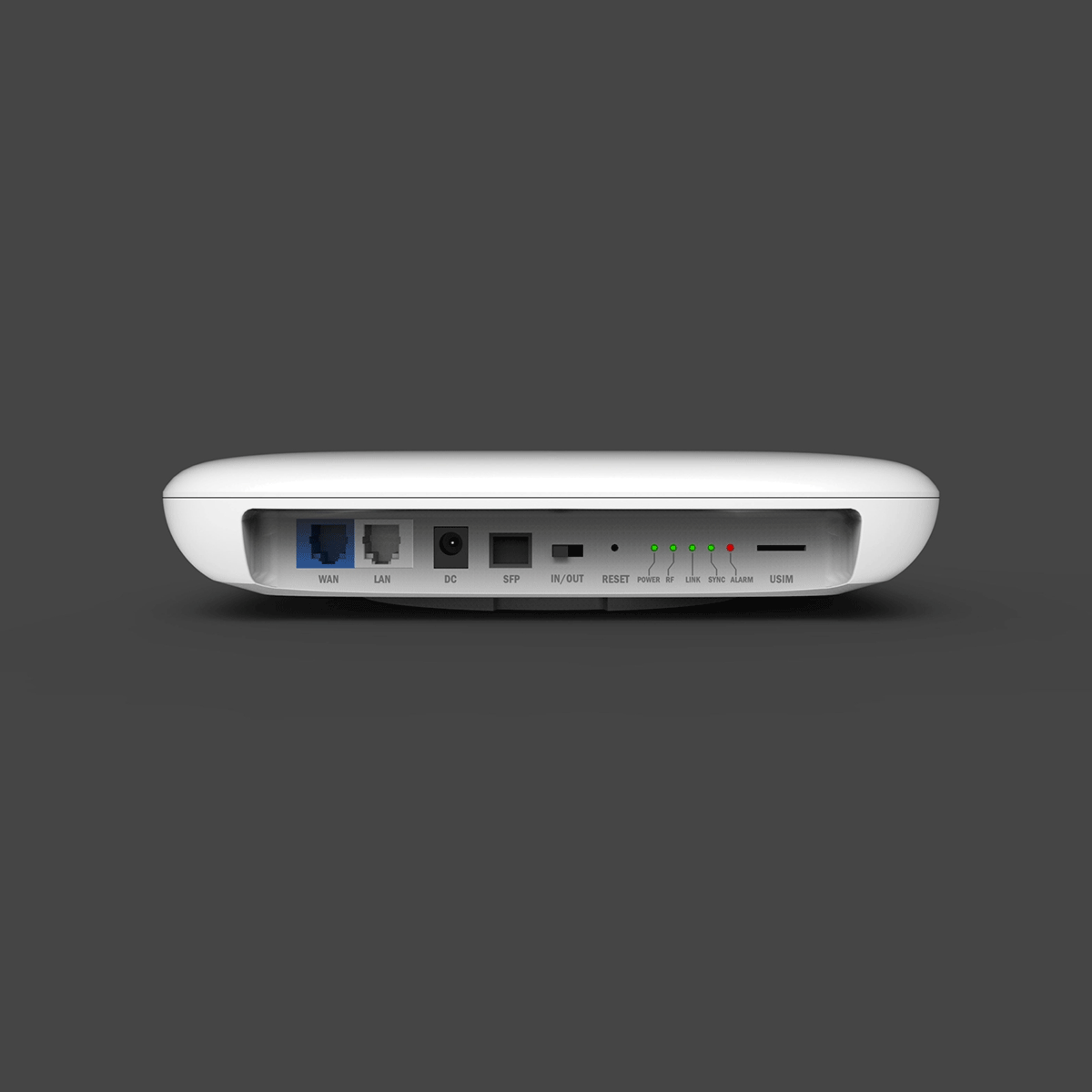

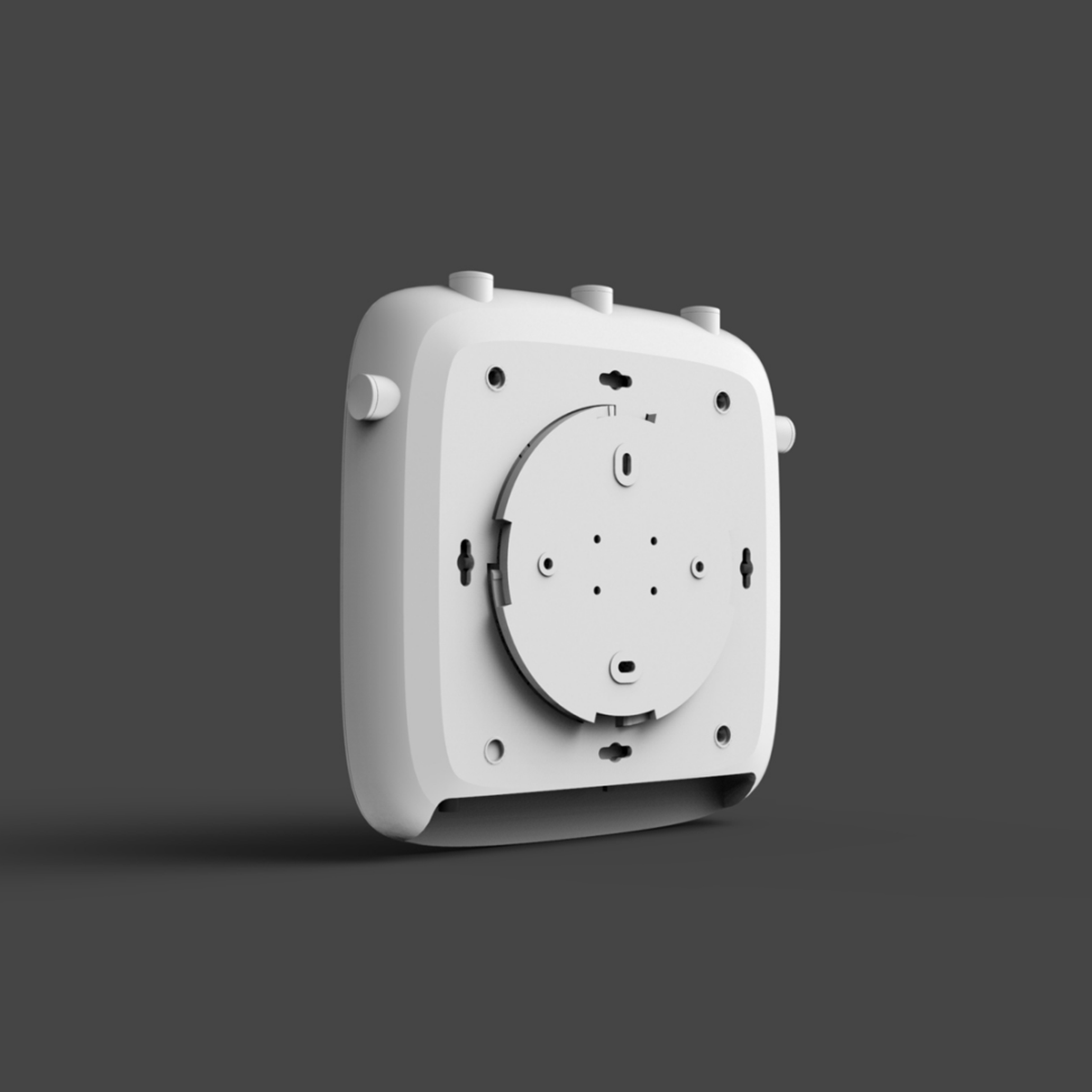

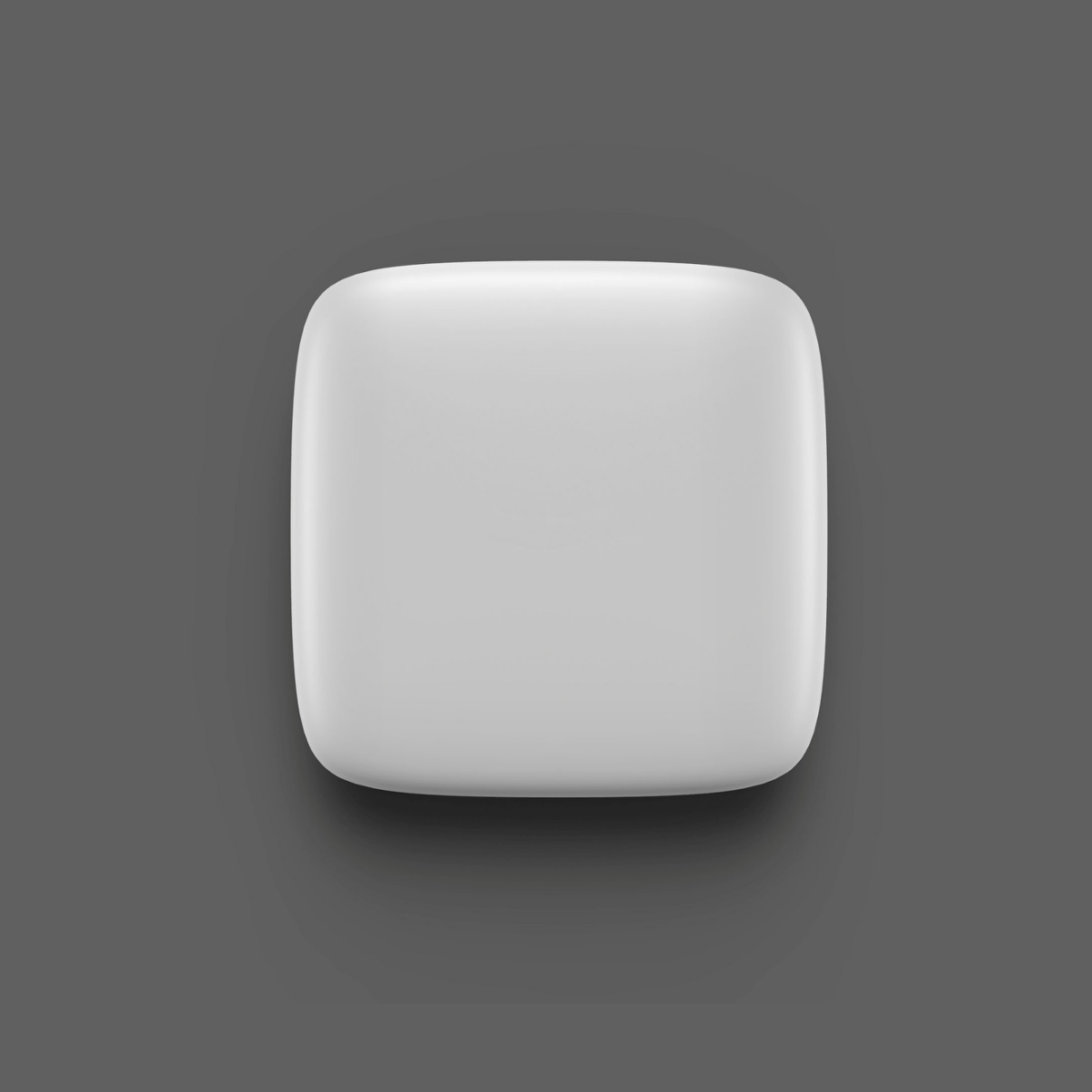

N02001 is an indoor integrated Pico base station device that adopts the Qualcomm chip solution and is based on TD-LTE technology.

It supports Ethernet and SFP optical port backhaul, and features flexible deployment. With dual-carrier configuration, it is a low-cost solution for solving indoor coverage and increasing network capacity.

13651816436 Manager Sheng

Tel

Product Specifications

● Throughput:
FDD: Downlink 400Mbps (256QAM), Uplink 150Mbps (64QAM)
TDD: Downlink 260Mbps (256QAM), Uplink 30Mbps (64QAM)
● Number of users:
VoLTE users: 64
Active users: 64
Connected users: 192
● Coverage range: 1000 m2
● Maximum transmit power: 500mW
+ Self-organization function:
• Self-configuration
Frequency, PCI, transmit power, automatic neighbor relations
• Self-optimization
+ Mobility robustness optimization, load balancing, inter-cell interference coordination
+ Supports configuration and firmware upgrade based on TR-069, web GUI.
+ Backhaul mode: GE port / SFP
+ Power supply: 12V / POE 48V
+ Rated power: 24W
+ Size: 220 x 220 x 40mm
● Operating environment:
+ Temperature: -20~60℃
+ Humidity: <80%
+ Protection grade: IP30
